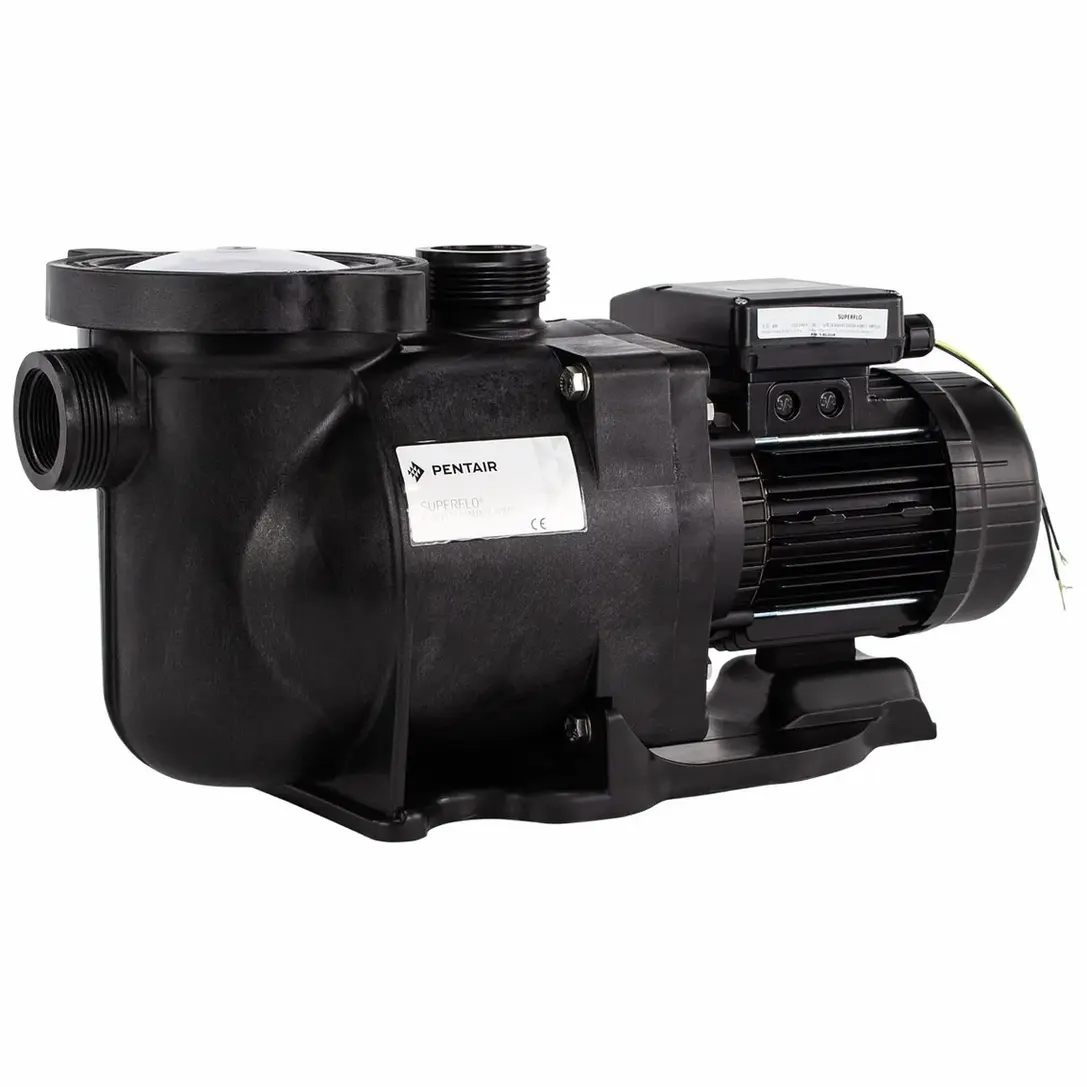

SuperFlo Pool Pump
Single Speed Swimming Pool Pumps
Single Speed Swimming Pool Pumps
Featured Highlights
Bi-material shaft with Stainless Steel AISI 304 drive-end
SKF sealed bearings
Thermal protection (single phase), IE2 compliant (tri-phase <0.75kW), IE3 compliant (tri-phase >0.75kW)
IP-X5
Inlet/Outlet - 1.5’’ BSP tapped
Ø Unions - 50 mm
Unions included - No
Salt resistancy - 0.40%
Downloads
Technical Specifications
Product Specifications
Model | Flow (m3/hr @ 8m) | Power Output (HP) | Volt (V) | Phase | Length - A (mm) | Weight (Kg) |
P-SFL-051 | 12 | 0.5 | 220-240 | 1~ | 546 | 13.8 |
P-SFL-071 | 15 | 0.75 | 220-240 | 1~ | 546 | 14.1 |
P-SFL-073 | 15 | 0.75 | 380-420 | 3~ | 529 | 12.5 |
P-SFL-101 | 18 | 1 | 220-240 | 1~ | 577 | 14.6 |
P-SFL-103E3 | 18 | 1 | 380-420 | 3~ | 529 | 13.9 |
P-SFL-151 | 21 | 1.5 | 220-240 | 1~ | 577 | 15.6 |
P-SFL-153E3 | 21 | 1.5 | 380-420 | 3~ | 557 | 22.3 |
P-SFL-201 | 23 | 2 | 220-240 | 1~ | 557 | 17 |
P-SFL-203E3 | 23 | 2 | 380-420 | 3~ | 557 | 23.9 |
P-SFL-301 | 29 | 3 | 220-240 | 1~ | 588 | 23.3 |
P-SFL-303E3 | 29 | 2.3 | 380-420 | 3~ | 588 | 30 |
Featured Highlights
Bi-material shaft with Stainless Steel AISI 304 drive-end
SKF sealed bearings
Thermal protection (single phase), IE2 compliant (tri-phase <0.75kW), IE3 compliant (tri-phase >0.75kW)
IP-X5
Inlet/Outlet - 1.5’’ BSP tapped
Ø Unions - 50 mm
Unions included - No
Salt resistancy - 0.40%
Featured Highlights
Bi-material shaft with Stainless Steel AISI 304 drive-end
SKF sealed bearings
Thermal protection (single phase), IE2 compliant (tri-phase <0.75kW), IE3 compliant (tri-phase >0.75kW)
IP-X5
Inlet/Outlet - 1.5’’ BSP tapped
Ø Unions - 50 mm
Unions included - No
Salt resistancy - 0.40%
Product Drawing
Performance Curve
